Custom Solutions Tailored to Your Industry
Keywords:
Seenboom vehicle underbody security Inspection System Basic Solution

Background of the planProgramme background

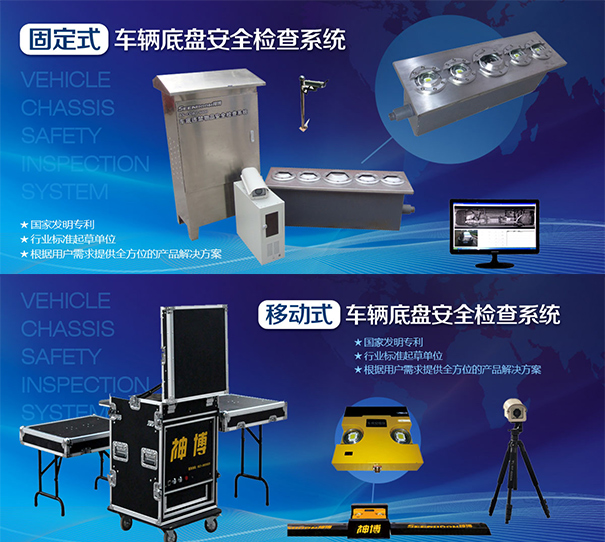

Shandong Seenboom
Seenboom vehicle underbody security Inspection System Basic Solution

21In the new century, as peace and development have become the global themes, some disharmonious factors have also been emerging. Terrorists are constantly placing various explosives in crowded vehicles and public places, remotely controlling or timing them to detonate, creating one bloody and terrifying case after another, which poses a challenge to the current social atmosphere of peace and stability.

In response to the phenomenon of threatening social stability through explosive intimidation, our company has developed a series of vehicle underbody security inspection and scanning system products. This product is mainly aimed at the increasingly rampant car bombs and contraband, etc. It can accurately display explosives, suspicious objects and illegal personnel hidden under the vehicle, and improve the detection speed of the vehicle chassis. It also reduces the input of human and material resources. This system adopts the currently powerful digital imaging processing technology and has been highly praised during many large-scale events at home and abroad, providing a reference for China's high-tech security inspection industry. Strictly implement the "General Requirements for Vehicle Underbody Scanning Systems" in the "Public Security Industry Standards of the People's Republic of China" and comply with relevant regulations.

User requirementsuser demand

  • Quick check

    It can quickly check whether there are any prohibited items hidden under the chassis of vehicles passing through the crossing

  • Improve work efficiency

    Improve the efficiency of staff in inspecting vehicle chassis

  • Waterproof and dustproof

    The vehicle underbody scanner is waterproof, dustproof and fog-proof, and can withstand70Ton of gravity compaction

  • Unified management

    The system can set up black and white lists to uniformly manage the license plates and undercarriages of vehicles entering and leaving

  • High-temperature resistant

    The vehicle underbody security inspection scanning system can be used normally without being affected by high or low temperatures in the environment and can withstand harsh weather and environments.

  • Normal image output

    The vehicle underbody security inspection scanning system can produce images normally without being affected by the speed of vehicles passing through the crossing

SolutionSolution

System process / System flow

System process

Diagram of the vehicle entry process

System composition / system composition
  • 01Vehicle underbody inspection scanning processing system software
  • 02Vehicle underbody safety inspection scanning imaging equipment
  • 03The host of the vehicle underbody scanning system
  • 04Intelligent control equipment for vehicle underbody scanning
  • 05License plate capture camera

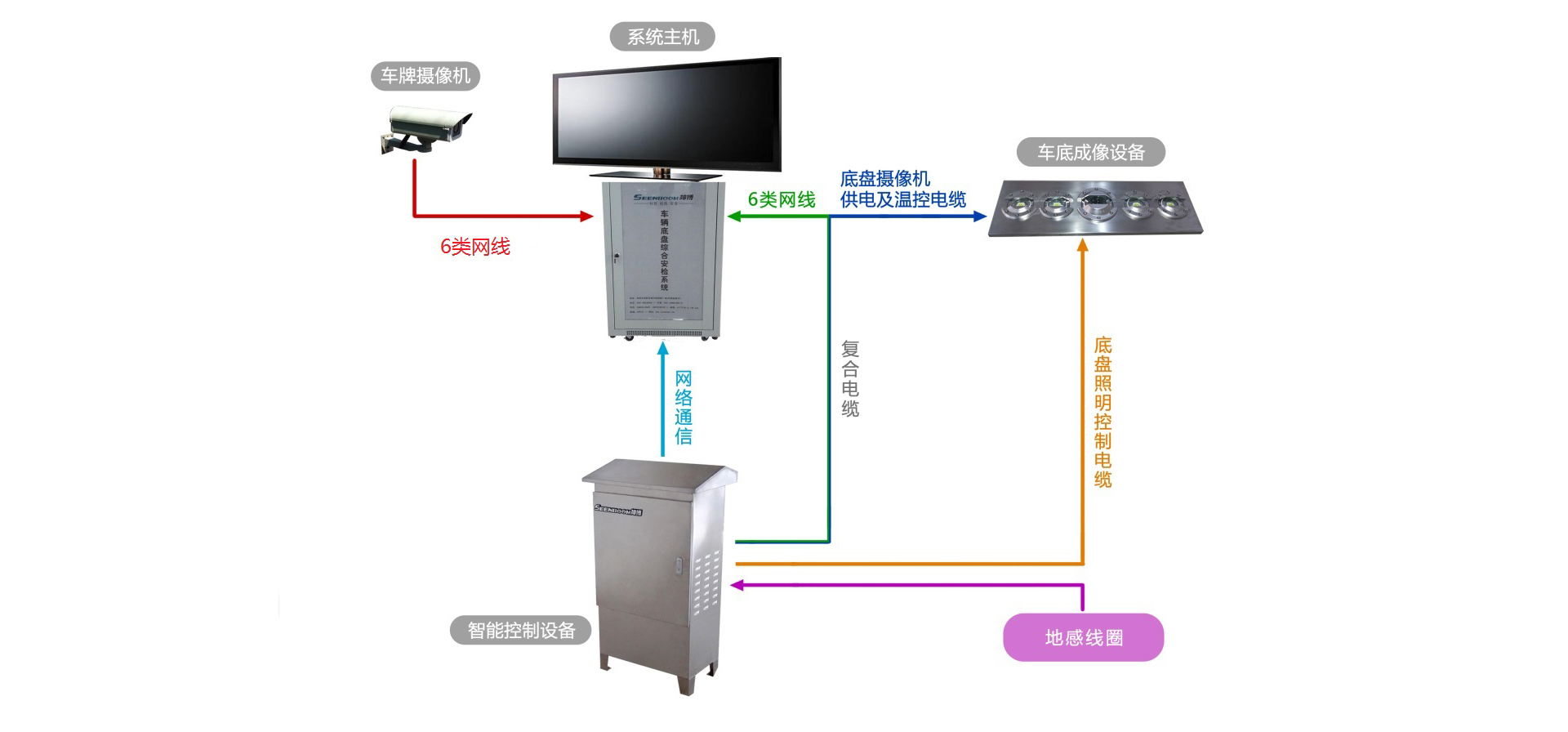

Diagram of the composition of the vehicle underbody scanning system / Composition diagram

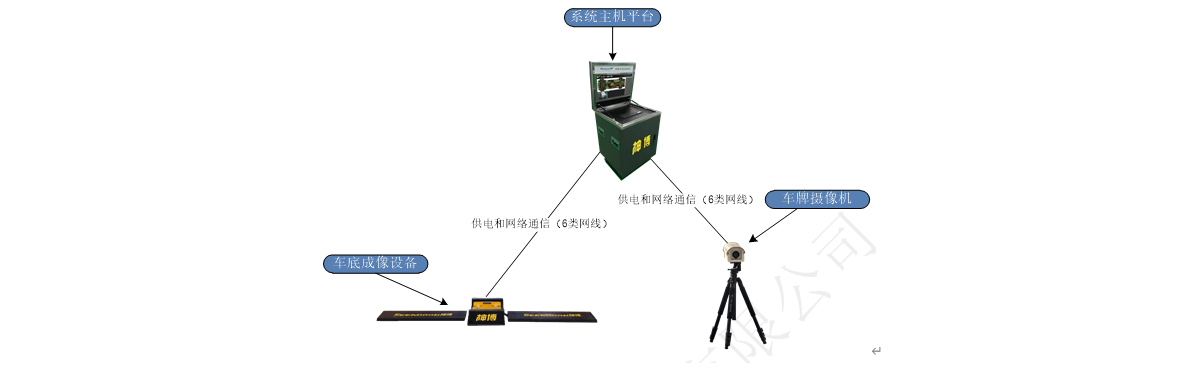

Fixed type Fixed type Mobile Mobile

The Seenboom fixed vehicle underbody imaging equipment is a key device in the Seenboom vehicle underbody scanning system. It is used to complete the data collection of vehicle underbody images, facilitating the computer's processing and imaging of them. The system adopts the currently powerful color digital linear array imaging technology, which can achieve a one-time complete and thorough scanning and imaging of the vehicle underbody. The resolution of the scanned vehicle underbody image can be as high as9000Ten thousand pixels. However, the vehicle underbody imaging equipment is an outdoor installation device. The environmental adaptability of this component is the key to determining whether the entire system can operate stably for a long time. The Seenboom vehicle underbody imaging equipment adopts a mature modular design and has good environmental adaptability. Its component box, mechanism,LEDThe important components such as the surface light source all adopt special anti-pressure protection, anti-vibration and sealing designs. The entire equipment is installed in a closed manner, which well meets the users' performance requirements for waterproofing, moisture-proofing, dust-proofing and fog-proofing. The Seenboom vehicle underbody imaging equipment features excellent stability and reliability, capable of operating normally for a long time in any natural environment, truly meeting users' all-weather and maintenance-free usage needs.

Seenboom's underbody imaging equipment has obvious advantages in handling technologies such as waterproofing, pressure resistance, immersion resistance, and fogging resistance in China. The company has always adhered to the principle that quality is the top priority and customers come first. Therefore, our products have been widely used and recognized by users both at home and abroad.

Application CaseSolution

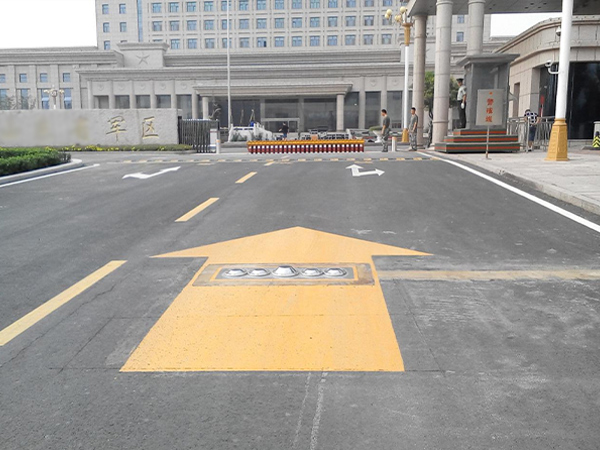

  • A certain military regionA certain military region
  • The Two SessionsThe Two Sessions
