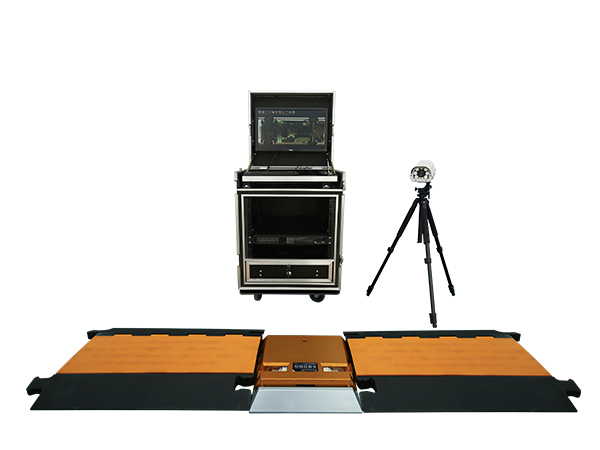

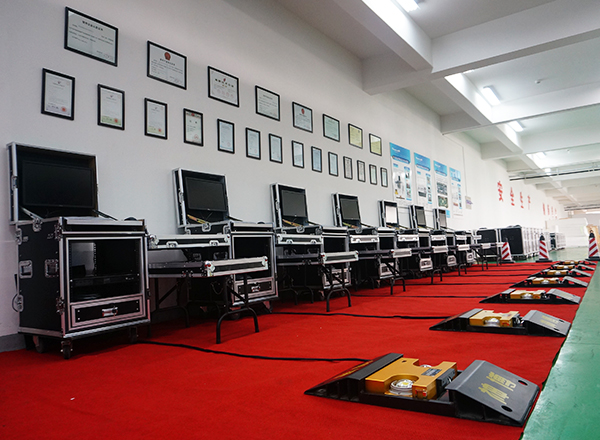

Cat's eye-LThe mobile vehicle underbody security inspection scanning system adopts high-definition colorCCDDynamic scanning technology imaging can automatically detect the chassis information of passing vehicles, and its scanning field of view is larger than180Degree.
Cat's eyeLThe vehicle underbody security inspection scanning system adopts colorCCDDynamic scanning technology is used for imaging, automatically detecting passing vehicles, with a viewing Angle greater than180The resolution of the generated vehicle chassis image is greater than7000With a resolution of 10,000 pixels, it can display high-definition and complete regular chassis images of vehicles passing through in real time. The output images are uncompressed and the system automatically scans them1～125km/hThe vehicle chassis of the vehicle speed. For longer vehicles, you can drag them through the image preview window to view the entire vehicle chassis. When the vehicle passes by, the system automatically displays a high-definition and complete image of the vehicle chassis, allowing you to have a clear view of the information collected from the bottom of both large and small vehicles. It is an indispensable security check tool for large-scale event security or temporary deployment.

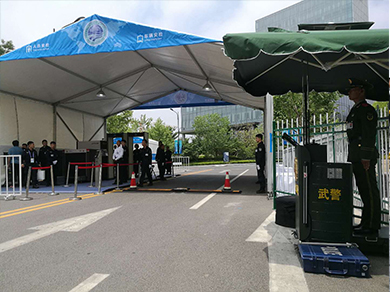

The SCO Summit in Qingdao

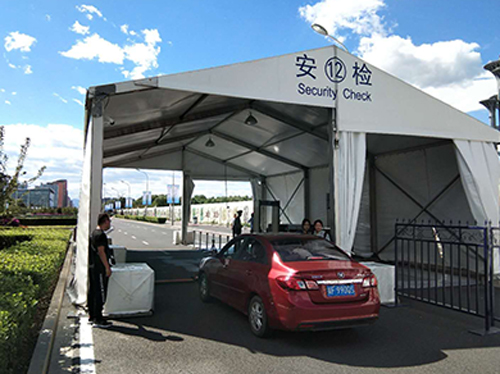

Forum on China-Africa Cooperation

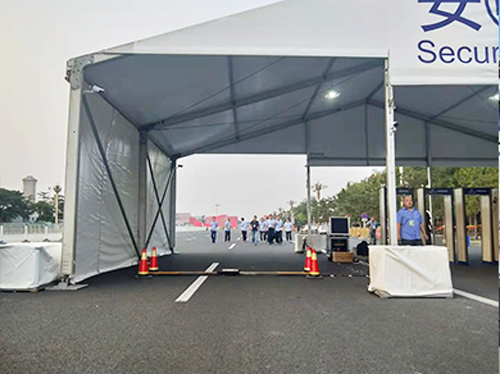

70Anniversary military parade
Three-dimensional model
It can generate a three-dimensional model of any vehicle chassis
Easy to carry
This scanner is lightweight, portable, plug and play, and responds quickly
Intelligent imaging
High-resolution color camera, high-speed intelligent imaging
No limit on length
Scan any vehicle model without any limit on vehicle length
It does not affect the image quality
Staying above the system and continuing to drive will not affect the image quality
Report export
The system can export reports according to the options
Strong adaptability
It has strong environmental adaptability and is highly adaptable
Working environment
It has strong adaptability and can work even in harsh weather conditions

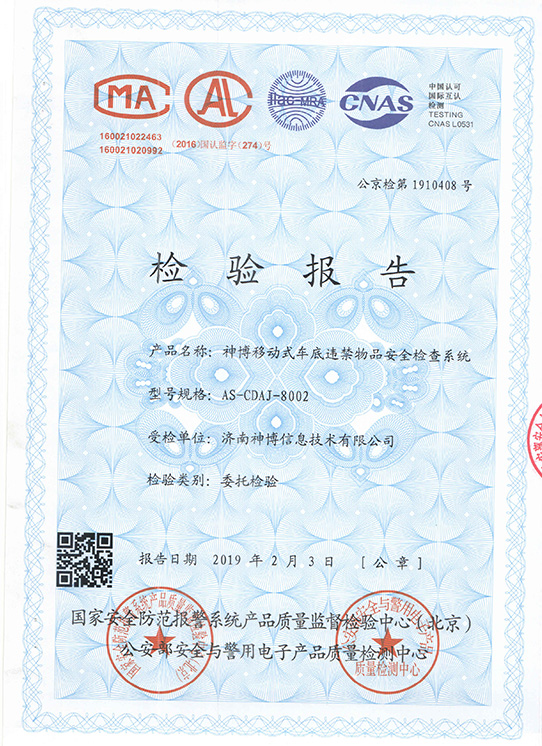

Inspection Report of the Mobile Vehicle Underbody Prohibited Items Security Inspection System

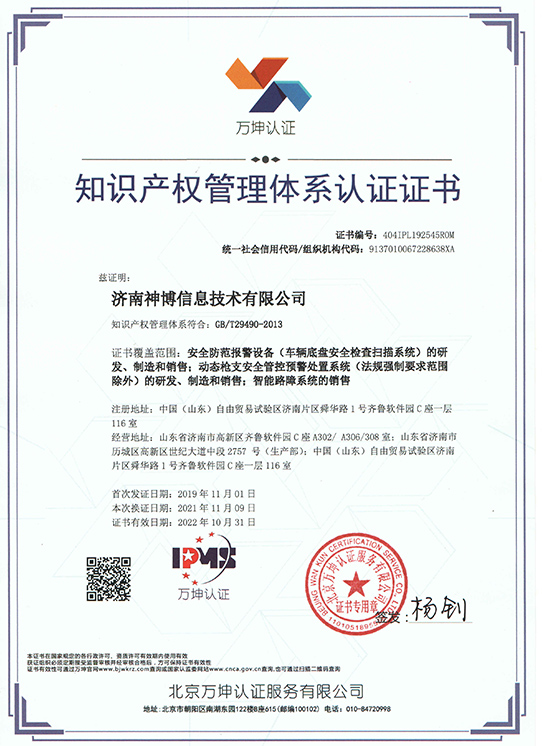

Intellectual Property Management System Certification Certificate

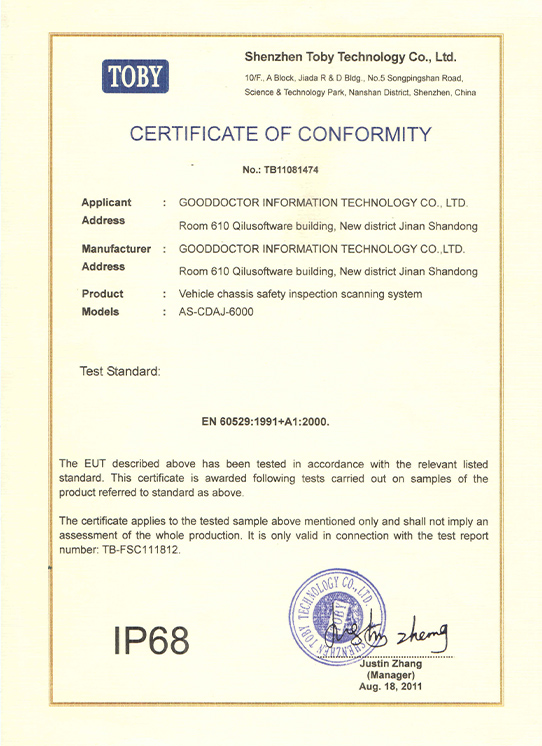

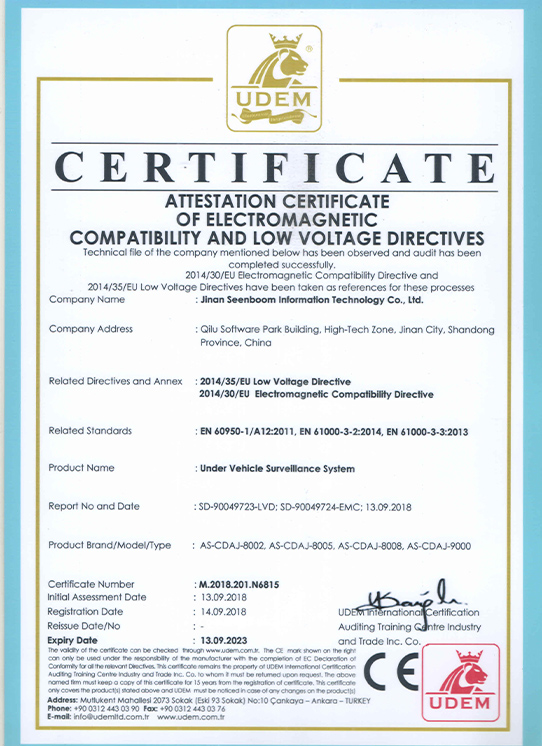

CERTIFICATE OF CONFORMITY
CERTIFICATE
| Parameter category | Parameter details |
| Scanning method | High-speed color area array camera splicing method imaging |
| Resolution | 1024,1624,2k,4kCustomizable |
| Snapshot rate | ≈100% |
| Magnification | ≥32Grade, customizable |
| The chassis imaging shows the time | Real-time display |
| Display resolution | Automatically adapt to various display resolutions |
| Operating system | SupportWindows7,Windows10"Galactic KirinUbuntuSuch asLinuxRelease version, customizable |
| Speed limit | Suggestion＜85km/hCustomizable |
| Scanning method | Software trigger, infrared external trigger |
| Protection grade | IP68 |
| Ambient temperature | -40℃~85℃Customizable |
| Lighting component | 2"Multi-directional"LEDSurface light source Lifespan≥60000 |
| AIAutomatic image judgment | Customizable |
| Provide secondary developmentSDK; System customization, development and integration | |
Equipment configurationStandard configuration1The road license plate recognition module can be optionally expanded to2Road,
Single-character recognition accuracy≥99%
Average recognition timeLess than20ms
Accuracy rate of whole card recognition ≥95%
The allowable horizontal tilt Angle for license plate images:±15°
Character (excluding Chinese characters) recognition accuracy:≥95%
Accuracy rate of whole card recognition ≥95%
Video signal-to-noise ratioGreater than48db
IdentificationTriggered license plate number recognition
