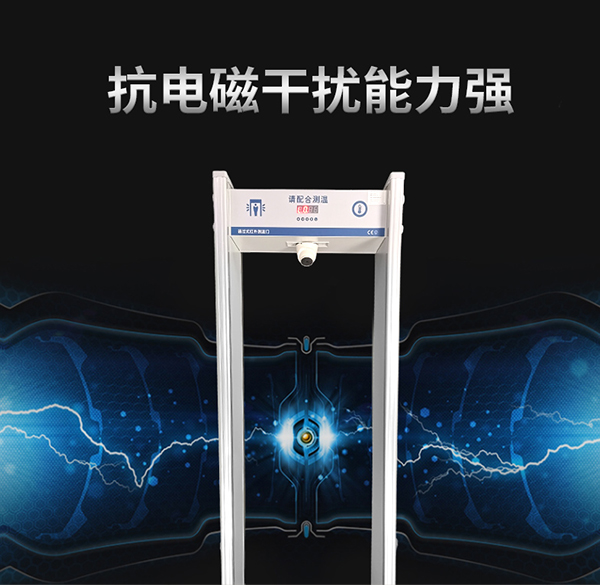

The through-type temperature measurement door is imported from BelgiumMelexisThe original infrared long-distance detector effectively prevents large-scale infectious diseases and has strong anti-interference ability. It is widely used in important places such as major hospitals, schools, subways and airports.
Through-type temperature measurement door, this type of temperature measurement through-type door: imported from BelgiumMelexisThe original infrared long-distance detector conducts infrared body temperature measurement before passing through. It will sound an alarm to indicate whether the body temperature is normal or abnormal, effectively preventing large-scale infectious diseases. It has strong anti-interference ability and is widely used in important places such as major hospitals, schools, subways, and airports.
Temperature monitoring
It can monitor the temperature of personnel passing through the temperature detection door. Test distance:1cm-100cm
Preliminary screening of human body temperature
The safety temperature threshold can be set. When the threshold is exceeded, the local sound and light alarm of the security door can be triggered to establish the first line of defense
Powerful component
Imported from Belgium MelexisOriginal infrared long-range detector, high precision, stable quality and performance
Remote control
Support data platform management, real-time monitoring of personnel body temperature and data storage (optional)
Voice prompt
Real-time temperature: When a person's temperature is measured, the voice will broadcast "Normal temperature" or "Please recheck temperature" to quickly and accurately screen out people with abnormal temperatures
Modular component design
Transportation and maintenance are convenient and fast
|
Walk-Through Metal Detector Details & Introduction |
|||
|
outside shape feet " |
2190*480*865 mm |
heavy |
51kg |
|
tong tao feet " |
2000*390*755 mm |
net heavy |
40.5kg |
|
package loading feet " |
2300×700x250mm / 775×270×470mm |
work consumption |
＜22w |
|
work as electricity pressure |
AC90V～240V 50／60Hz |
Working humidity |
95%No condensation |
|
ring habitat wen Degree of |
5℃～35℃(Usable environment |
save storage wen Degree of |
-20℃～70℃ |
|
The volume of the alarm sound |
The alarm volume is adjustable |
measuring quantity when between |
≤0.5 S |
|
measuring wen From the From the |
1cm-100cm(Adjustable within range |
show in fine Degree of |
± 0.1℃ |
|
measuring wen die type |
Supports body temperature mode and surface mode (adjustable) |
Manual temperature compensation |
Support |
|
measuring wen fine Degree of |
± 0.3℃ |
brush new rate |
0.5Hz-512Hz |
|
F O V |
55°x35° |
Through the count of people |
Support |
|
wen Degree of show in |
Support |
The alarm threshold is adjustable |
Supports high and low temperature threshold adjustment |
|

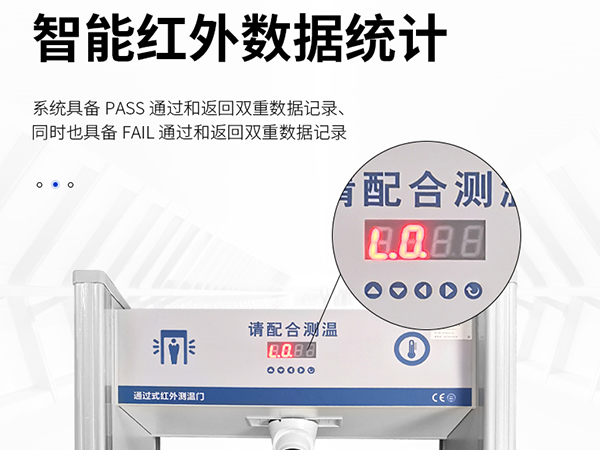

Temperature data storage |
SupportSDorTFCard interface |
Export of temperature data |
Support (built-in required.SDorTF"Card |
|
Centralized management of networked data |
Optional |
Alarm signal output |
Support |
|
Password protection function |
Support |
Restore factory values |
Support |
|
Ann loading ring habitat |
When used indoors, it helps to improve the accuracy and precision of temperature measurement |
||
|
The main machine show in |
High brightnessLEDMulti-functional display, high dust-proof performance, and extended standby time |
||
