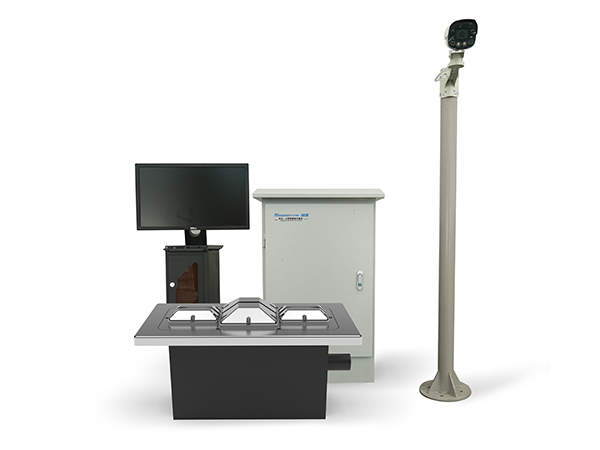

"Spirit Cat"-LThe vehicle underbody security inspection scanning system adopts color line array scanning imaging technology. This series of vehicle underbody scanning systems are compact in size and can be used indoors. They can provide multi-angle scanning and detection of vehicle underbodies and automatically compare to detect suspicious targets that are difficult for the human eye to spot.
Under the vehicleAIImage judgment technology
By applying deep learning technology and combining it with the massive big data under the vehicle, the vehicle chassis is analyzed and modeled.AIThe image recognition algorithm can automatically identify and label foreign objects in the vehicle underbody image, significantly reducing the workload of underbody security inspection operators.
Panoramic underbody splicing technology
The system adopts full-view multi-lens camera imaging technology, which can perform real-time high-resolution stitching and synthesis of vehicle chassis. The image resolution is high and the lens distortion is small, allowing for panoramic navigation viewing of vehicle chassis.
The undercarriage equipment adopts a three-compartment waterproof and airtight compartment structure design
The equipment compliesIP68The waterproof standard is that the shell can withstand it70For vehicles with a pressure of over 100 tons, the interior adopts a water-tight compartment structure design designed for aircraft carriers, truly achieving water resistance, dust resistance, fog resistance, frost resistance, moisture resistance and crushing resistance.
Supports domestic operating systems
The system is in supportWindowsBased on the operating system, it also supportsLinuxThe operating system supports domestic KylinLinuxThe operating system and software level have also fully achieved domestic independent control, ensuring information security.
Support domestic productsCPU
The system is in supportx86Based on the architecture processor, it supports domestic productionARMThe architecture processors, including domestic Phytium processors and Kunpeng processors, are fully domestically produced at the system hardware level and are independently controllable.
Design of a convex surface dedicated vehicle underbody integral guard
The small shield, big wisdom. The underbody shield of the vehicle adopts an integrated lotus structure design, which has high structural strength and good visual effect. Under the illumination of the vehicle lights at night, the visual effect it generates can effectively warn the owner to voluntarily check for vehicle safety hazards and facilitate maintenance.
Seenboom type fixed vehicle underbody prohibited items safety inspection system
A patent certificate for a Laser range-assisted splicing system
Patent Certificate for a Mobile Vehicle Underbody Image Acquisition Device
Patent Certificate for a Rapid Arming Device for Detecting License plates under Vehicles
| Parameter category | Parameter details |
| Scanning method | Colored line arrayCCDDynamic imaging through scanning technology |
| Resolution | 2k,4k |
| Field of view Angle | ＞178° |
| Magnification | ≥16level |
| Snapshot rate | ≈100% |
| The chassis imaging shows the time | Real-time display |
| Display resolution | Automatically adapt to various display resolutions |
| Operating system | SupportWindows 7,Windows 10 |
| Speed limit | Suggestion＜75km/h |
| Scanning method | Software trigger, ground sensing external trigger |
| Protection grade | IP68 |
| Ambient temperature | -40℃ ~ 75℃Customizable |
| Lighting component | 2Single-component sealLEDSurface light source Lifespan≥60000 |
| Sealing design | Waterproof, dustproof, moisture-proof, frost-proof, fog-proof, customizable |
| System power supply | AC220V/50-60Hz/500W |
| Equipment control box | SystemI/OControl, interactive intelligent control |
22"
Intel
4G
500G
AC220V 50/60Hz
Equipment configurationStandard configuration1The road license plate recognition module can be optionally expanded to2Road,
Single-character recognition accuracy≥99%
Average recognition timeLess than20ms
Accuracy rate of whole card recognition ≥95%
The allowable horizontal tilt Angle for license plate images:±15°
Character (excluding Chinese characters) recognition accuracy:≥95%
Accuracy rate of whole card recognition ≥95%
Video signal-to-noise ratioGreater than48db
IdentificationTriggered license plate number recognition
|
Parameter category |
Parameter details |
|
Main processor |
High performanceDSP |
|
Pixel count |
1920(H)*1080(V) |
|
Lens interface |
CS |
|
Connection method |
"Network |
|
Illuminance |
"Colorful":0.1Lux/F1.2Black and white:0.01Lux/F1.2 |
|
Signal-to-noise ratio |
64dB |
|
Video compression standard |
H.264/MPEG4/JPEG |
|
Video resolution |
Main bitstream1920*1080Auxiliary code streamD1) |
|
Power supply |
SupportAC24V/DC12VPower supply |
|
Power consumption |
Less than10W |
|
Working environment |
Working temperature-15℃～+70℃Working humidity10%～90% |
|
It meets the inspection requirements for vehicles of various chassis heights and lengths, ranging from ordinary sedans to extended containers. |
|
