With the continuous changes in the social environment and international situation, security inspection has become an issue that cannot be ignored. Among them, vehicle chassis inspection is easily overlooked by security checks due to its strong concealment, difficulty in inspection, leakage detection and the public's awareness of prevention of its hazards, making it a breeding ground for criminals. The traditional underbody safety inspection equipment (such as underbody safety inspection mirrors, etc.) has the following drawbacks: Low efficiency: manual operation, time-consuming and labor-intensive; High leakage rate: Prone to leakage; Low level of information: The real-time storage and recording of vehicle underbody image information is limited, and the level of information is low. Poor safety: It needs to be close to the vehicle, which can easily cause casualties among the inspectors. The underbody scanning system independently developed by Shandong Seenboom has perfectly solved all the above-mentioned defects.

The vehicle underbody security inspection scanning system independently developed by Shandong Seenboom adopts the open wide-field vehicle underbody image acquisition technology. The auxiliary light source under the vehicle is electrically connected to the sensor and opens and closes according to the photoelectric signal emitted by the sensor. The microcontroller is electrically connected to the sensor, receives the photoelectric signals sent by the sensor, generates pulse signals and sends them to the acquisition card. The acquisition card is electrically connected to the microcontroller, receives the pulse signals sent by the microcontroller, and determines the acquisition frequency. The underbody scanning camera is electrically connected to the acquisition card and takes pictures of the underbody of the vehicle according to the acquisition frequency of the acquisition card. It can achieve high-resolution and high-definition imaging of vehicle chassis. The operation of the scanning camera is controlled through an external trigger mode. The working process is as follows: The sensor and the microcontroller calculate the vehicle speed and then calculate the appropriate pulse frequency based on the vehicle speed. It can accurately display completely hidden blasting cracks, suspicious and illegal personnel, greatly improving the detection speed of vehicle chassis.

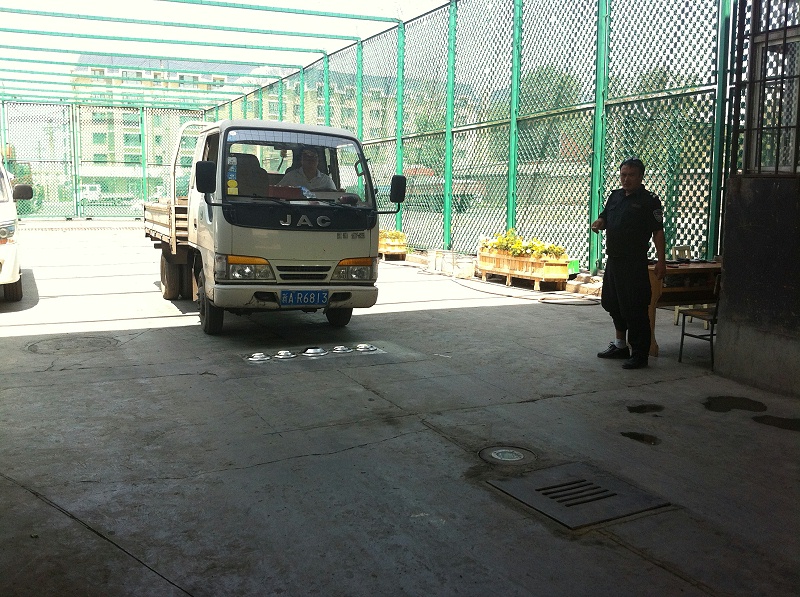

Vehicle underbody inspection products, safety precautions such as hidden explosives, toxic substances, jailbreak tools, illegal modifications, and oil leakage under the vehicle, etc. The system can simultaneously provide additional functions such as license plate recognition, vehicle body image recording, face recognition, temperature measurement, and automatic comparison of vehicle underbody images when vehicles enter and exit, seamlessly checking and recording all vehicle details, etc. It is a mature and efficient vehicle safety inspection product. When the vehicle enters the inspection passage, it triggers the equipment to start working through the ground induction coil. The supplementary light of the underbody scanning camera was lit up and the scanning of the underbody of the vehicle began. After the vehicle passes through the equipment under the vehicle, the scanning stops and is transmitted to the server. During the vehicle entry process, the license plate recognition camera and (system) automatically start working, and the license plate recognition and other processes are uploaded to the server. The inspectors in the monitoring room check the data through the system software in front of the computer. After the inspection is passed, the vehicle interception system can be lowered and the vehicle can leave the checkpoint.

　　Multi-channel scene(1~4)Real-time monitoring and synchronized high-definition video; Automatically recognize license plates, relevant archived detection time information, corresponding vehicle underbody images, and multi-channel surveillance images; Quick search and playback (zooming, local magnification), and quick comparison with stored vehicle underbody images.≤1s); The standard underbody images in the database are automatically compared and displayed with the current real-time underbody images. Real-time reflection of marked vehicles(Black and white list)"Information; It features balance, sharpening, smoothing, contrast, and can operate normally under harsh conditions such as rain and direct sunlight.

Underbody safety inspection systemIt mainly inspects the undersides of various vehicles and can quickly and accurately detect prohibited items, illegal items or personnel hidden under the vehicles. This method is faster and more accurate than the traditional underbody inspection mirror, significantly enhancing the speed and accuracy of vehicle safety checks and reducing investment in human resources.Underbody image scannerControl equipment and environmental adaptability: Scanning method: Linear scanning, triggering ground coil; Speed1-80km/hSuggestion≤30km/hPerspective≥175Longitudinal resolution of degree image:2048PixelCCD; Scanner data cable100"Mi;(Customizable length)Lighting component: Four individual sealsLEDSurface light source Lifespan1wanh; It can be applied to the vast majority of places where security checks are required.

　　Shandong Seenboom Security Technology Co., Ltd. is committed to providing customers with excellent servicesUnderbody scanning systemWe center on the needs of our users and are deeply favored by our customers. The company is engaged in the development of hardware and software20For many years, with innovative design, powerful technology and an independent team, we ensure to provide customers with excellent products and services. Shandong Seenboom adheres to the business philosophy of "customer first, service first, creativity first, and technology first", and is committed to serving every customer well.
