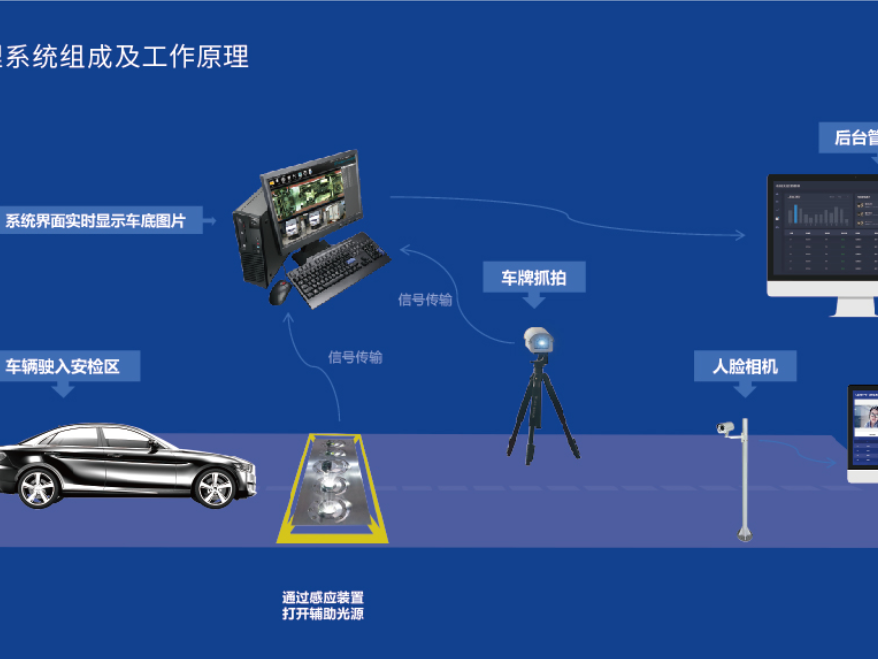

According to the on-site design, clearly define the specific installation positions of the vehicle underbody scanning imaging equipment, equipment control box, vehicle detector, vehicle capture camera, vehicle underbody security inspection system host, display, and the direction of connection cables for each pipeline equipment. Firstly, when determining the burial location of the equipment based on the on-site conditions, the following factors are generally considered:

1Channel width

Calculate the centerline of the channel based on its width, and bury the vehicle underbody scanning imaging equipment at the position where the centerline of the vehicle underbody safety inspection scanning imaging equipment overlaps with the centerline of the channel.

2.The length of vehicles entering the passage

To ensure that the chassis information of all entering vehicles is scanned, it is necessary to count the length of the longest vehicle entering the passage, so that the vehicle bottom scanning imaging equipment can be buried between the release passage doors to meet the parking requirements of the longest vehicle.

3.Underground pipeline and cable laying in the passage

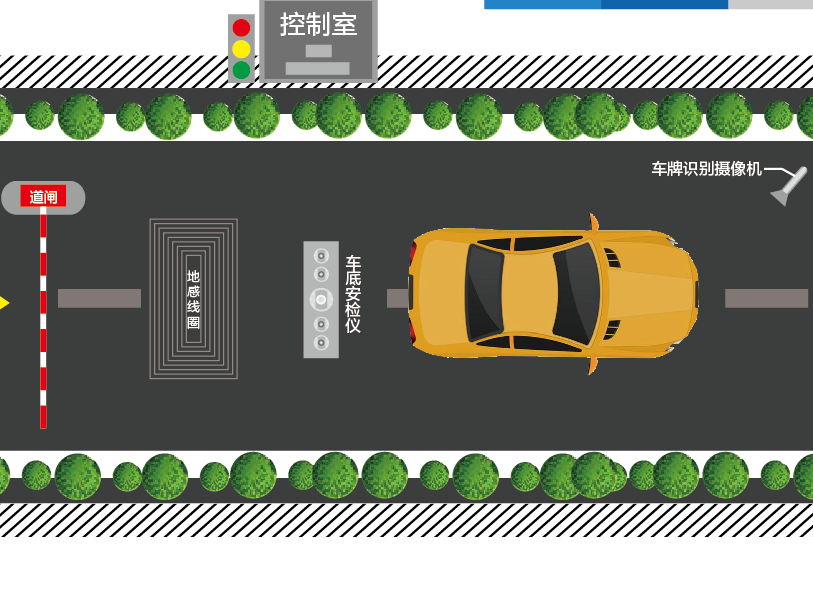

The burial location of the vehicle underbody scanning imaging equipment must avoid interference from underground pipelines and cables. After determining the burial position of the vehicle underbody scanning imaging equipment, the specific locations of the ground induction coil, vehicle capture camera and other devices can be clearly identified based on their relative positions.

Iii. Civil Engineering Guidance

After the installation location of the vehicle underbody scanning imaging equipment is determined, the equipment should be installed in the underground pit. The surrounding area and the bottom of the pit are cast with concrete, and the ground frame should be placed in the concrete to make it higher than the ground0.5cmEnsure the level and blend seamlessly with the concrete pouring part.

After the vehicle underbody scanning imaging equipment is pre-embedded, vehicle detectors, cable conduits, etc. can be pre-embedded. The entire cable duct should avoid elbows as much as possible to facilitate cable laying.

The ground induction coil is installed in front of the scanning imaging equipment under the vehicle. Four turns of ground sensing wires are pre-embedded in the trough, with their surfaces directly covered with cement, and then introduced into the vehicle's underbody control box. The connection between the coil and the control box under the vehicle adopts a twisted-pair formФ16thePVCPipe laying.

The snapshot camera is located in front of the vehicle and is installed at a certain height1.2-1.According to the on-site situation, the Angle between the camera direction and the center of the passage must not exceed30The smaller the degree, the better.
