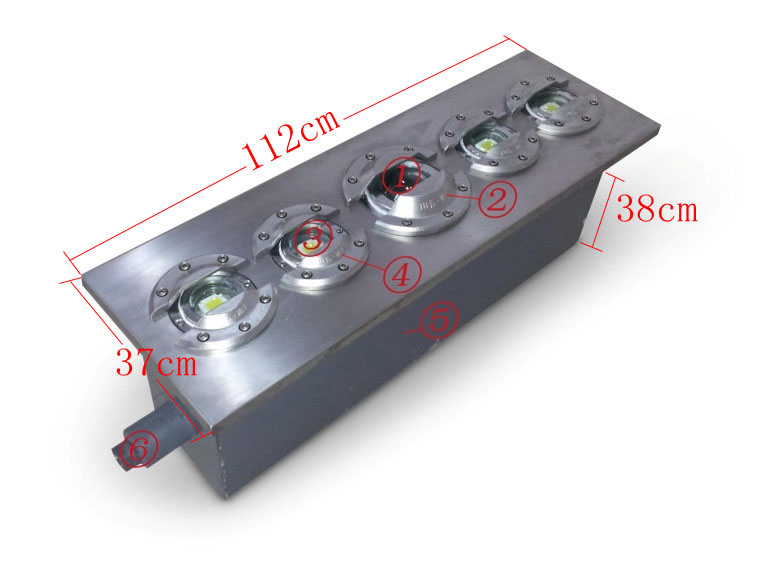

1Fixed underbody scanner
Size standard: length112cm wide37 cm high38cmThe outer diameter of the pipe is threaded iron pipe50mm.

Steel channel material: Strong compressive resistance, standard load-bearing capacity is30Tons.

①　The vehicle underbody scanner is equipped with a camera inside. It scans the underbody of the vehicle and converts it into a signal, which is then transmitted to the main unit through a signal line.
②　Vehicle underbody scanner protective cover, made of stainless steel.
③　The auxiliary surface light source of the vehicle underbody scanner improves the scanning accuracy and image quality.
④　Light source protection cover for the auxiliary surface of the vehicle underbody scanner, made of stainless steel.
⑤　The carrying box of the vehicle underbody scanner system is made of stainless steel.
⑥　The cable threading ports for the signal line, power line and auxiliary surface light source of the vehicle underbody scanner.

2.The main unit of the vehicle underbody security inspection system
willUnderbody scannerThe scanned image information of the vehicle underbody can be further processed to perform operations such as historical image comparison, automatic image judgment, machine learning, and black and white list management. Security personnel can also perform manual operations, such as zooming in and out of pictures, extracting or entering historical data, etc.
3Fixed distribution cabinets and license plate recognition

Size standard: height120cm wide70cm thick45cm

Shandong Seenboom isUndercarriage security checkandUnderbody scanning systemAs a manufacturer, we can provide you with solutions and customized services for crossing security inspection projects!
